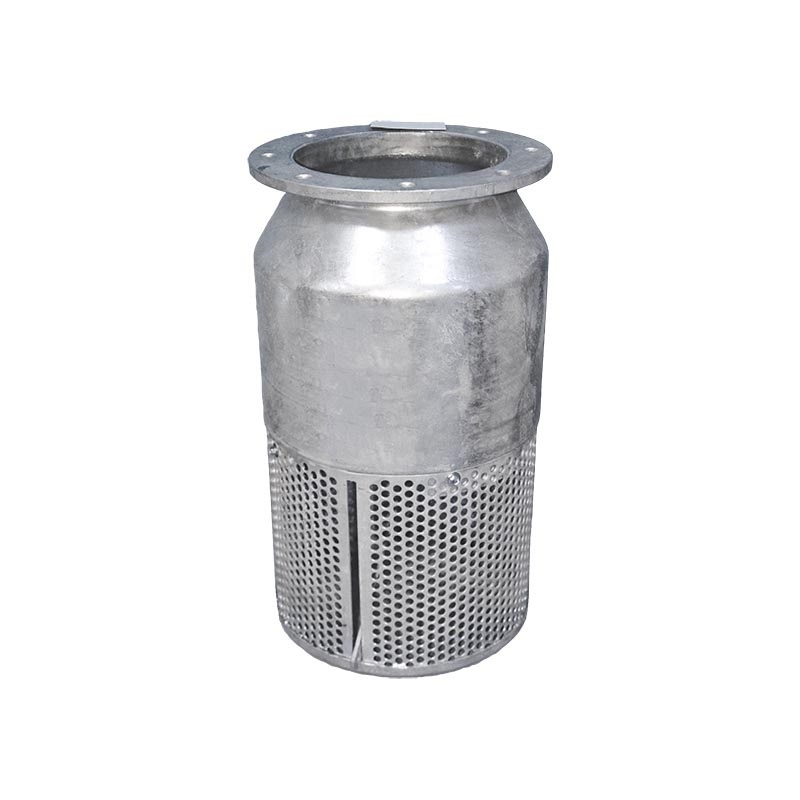

The Galvanised Foot Valve is installed to prevent back flow and losing prime, and prevent large debris from being sucked into the pump system.

Size range: DN80(3") to DN600(24")

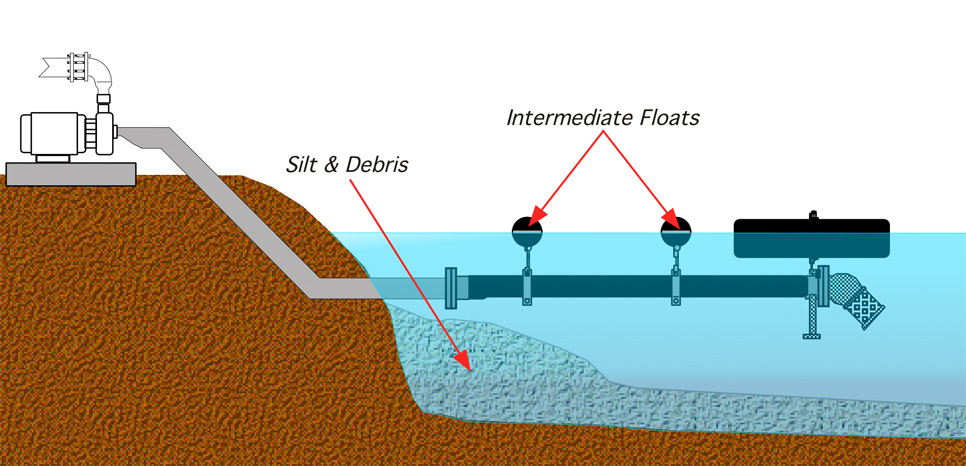

Installed under water, or submerged in fluid.

Installed on the suction side of a pump, when the pump turns off, the valve automatically closes by the backwards flow of fluid. This keeps fluid in the suction line, keeping the suction line primed, ready for the next pump start up.

Galvanised Flanged Foot Valves are available in size DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN550, DN600.

AS2129 Table D flanged.

AS2129 Table E flange on special request. Pricing differs to Table D.

- 12 months warranty on manufacturing defects only.

SKU FVGALV
Brand Foot Valve - Galvanised - Flanged Table D
