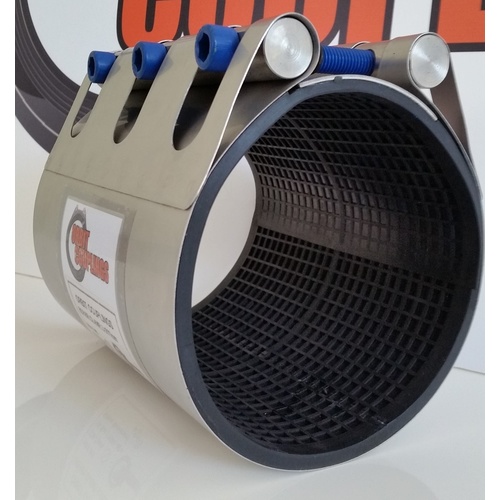

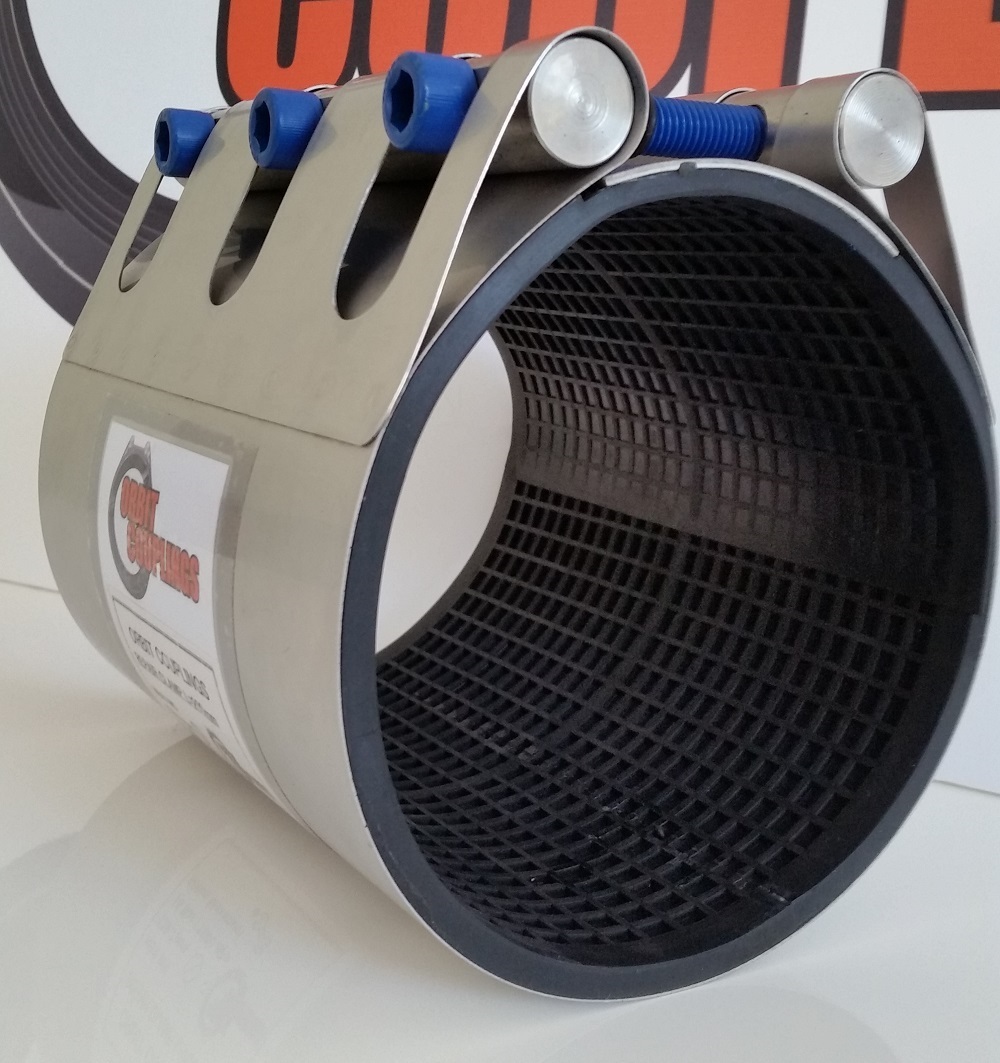

The Orbit Pipe Repair Clamp Series 1 and 200mm long with 3 bolts.

Available in pipe OD sizes from 44.0mm to 327.0mm

Series 1 repair clamp benefits

• Durable and Reliable: Made from high-quality, corrosion-resistant materials, ensuring longevity in demanding environments.
• Quick Installation: Requires no welding, flanging, or special tools, reducing labor costs and installation time.

The Orbit Pipe Repair Clamp Series 1 is a high-performance mechanical repair clamp designed to seal pipes in various industrial applications. It provides a secure and leak-proof seal. The coupling is suited for use in systems that experience vibration, pressure changes, and temperature variations, making it perfect for applications such as marine, industrial, and building services.

Features:

• Flexible Casing: The casing is designed to bend and flex so that it can be opened and wrapped around pipe.
• Corrosion-resistant materials: Ensures long-term durability.
• No welding required: Simplifies the installation process.
• Pressure and temperature resistance: Suited for industrial and marine use.

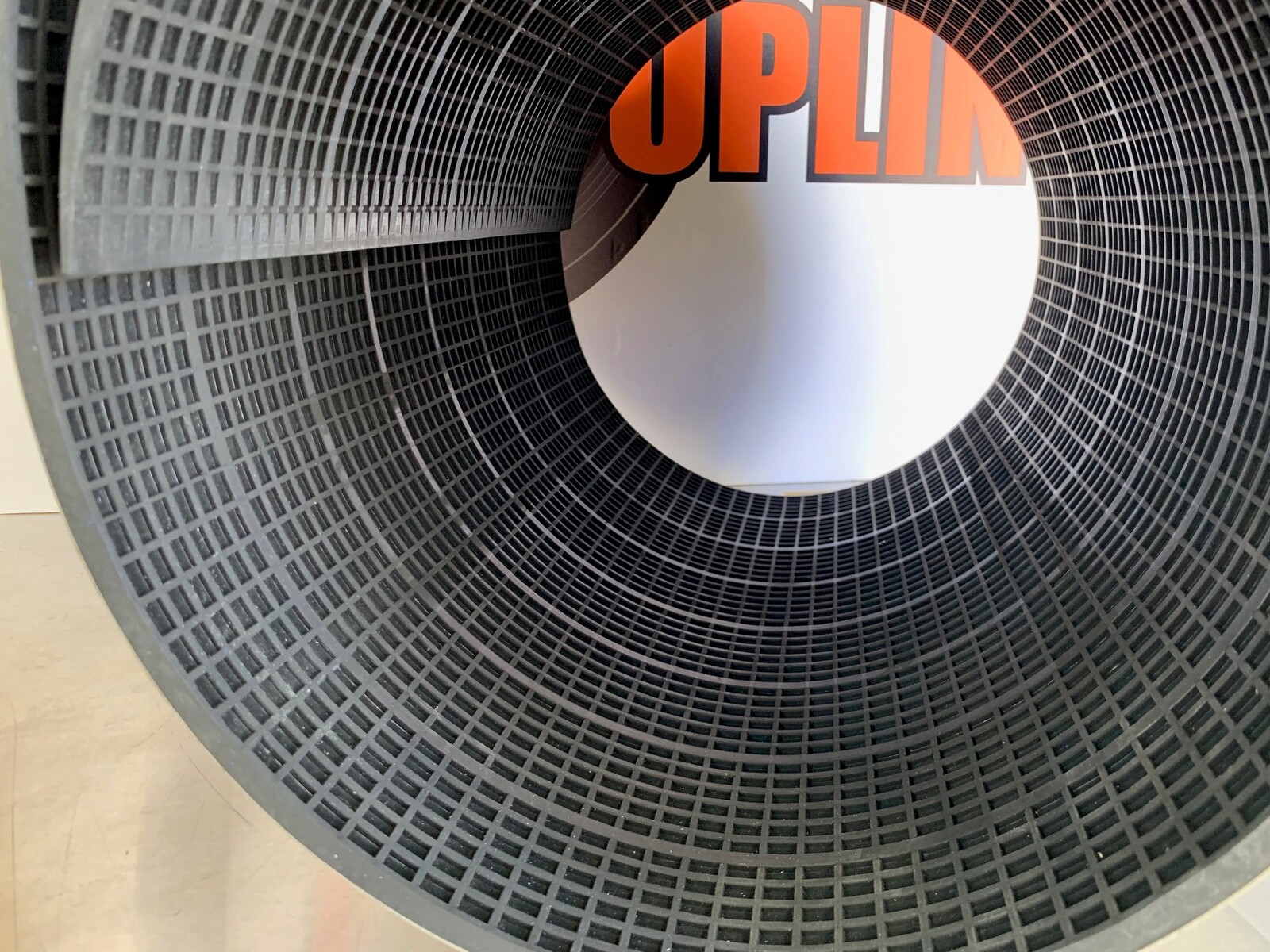

• Square rubber gasket design: Allows water and fluids to be trapped between the rubber seal design.

Wrap around your pipe to seal any leaking hole or crack in your piping system.

Manufactured from 316 stainless steel and rubber.

Very easy to install, with basic tools.

This is for PIPE REPAIR ONLY. This cannot be used as a pipe coupling.

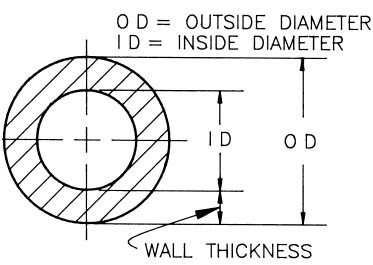

Please check your pipe Outside diameter before ordering.

Price shown is for EPDM rubber or NBR rubber sealing sleeve.

- Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote.

- 12 months warranty on manufacturing defects only.
