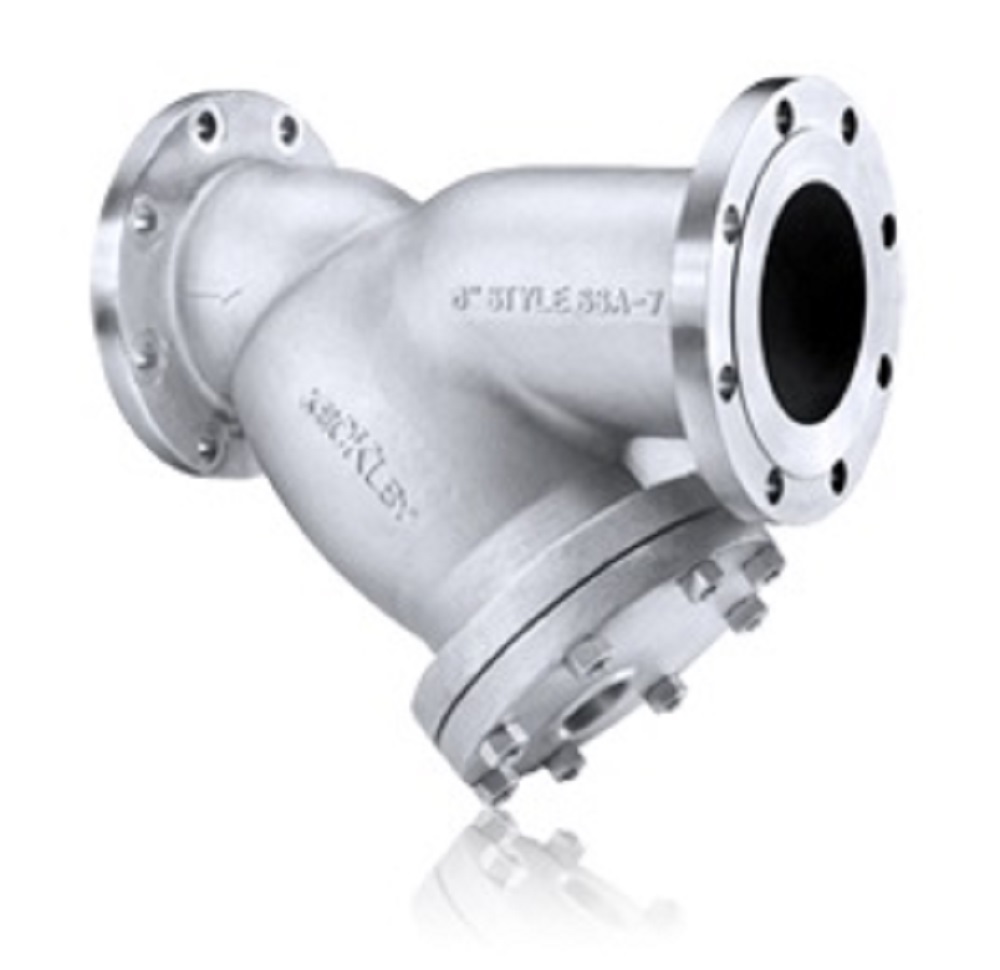

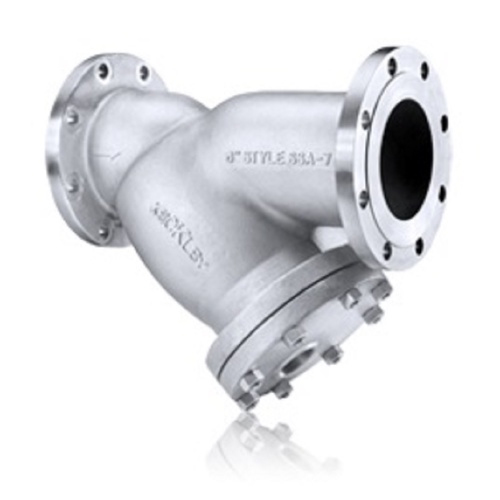

Stainless Steel Y Strainer CF8M Flanged ANSI 150LB

Shipping

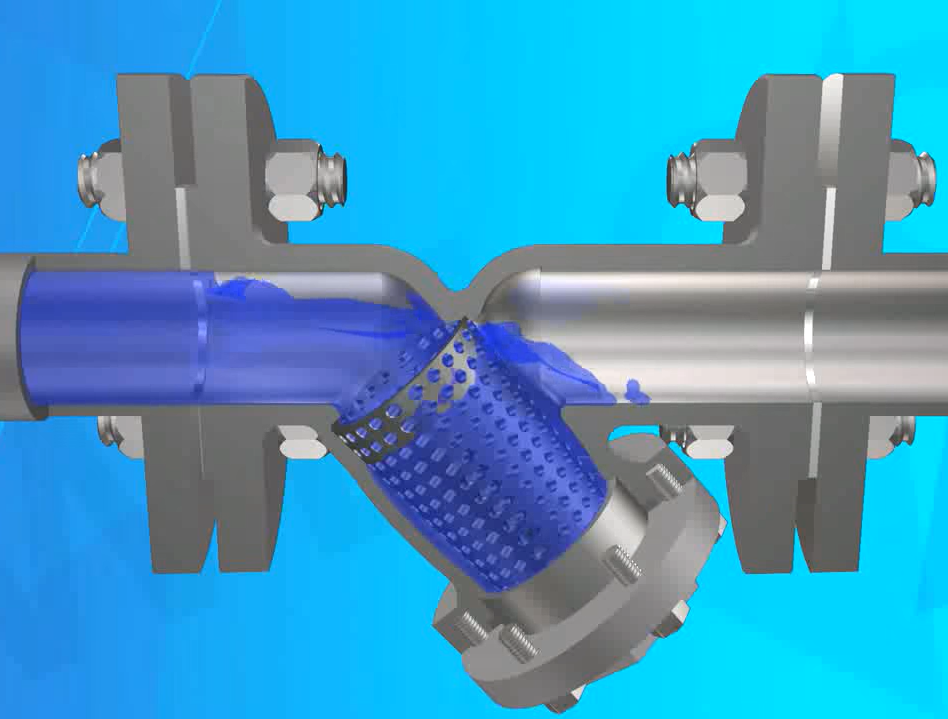

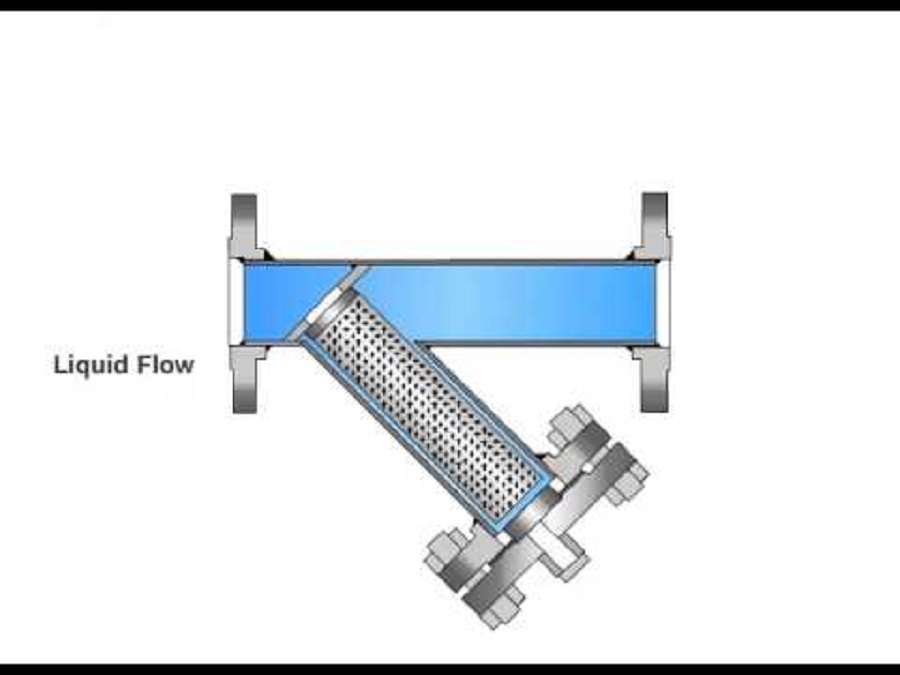

The Stainless Steel Y Strainer CF8M Flanged ANSI 150LB in 316 stainless steel with a 316 stainless steel filter screen internally. This high quality material provides a long life Y strainer suitable for corrosive environments.

As standard they come with ANSI 150LB Flanges. AS2129 Table E flanges can also be provided please contact us for a quote.

Flanged Stainless Steel Y strainers available in sizes DN50, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600.

- Available in a range of flange specifications such as Table D, Table E, ANSI 150LB, ANSI 300LB - contact us for a quote.

- Available with different screen aperture sizes - contact us for a quote.

- 12 months warranty on manufacturing defects only.

Body material: CF8M ( cast 316 stainless steel )

Strainer mesh material: 316 stainless steel

Fasteners: 316 stainless steel

Pressure rating: 20 Bar / PN20 for ASME CL150/ANSI 150LB spec.

High pressure Y strainers available on request, such as ANSI 300LB, ANSI 600LB.

SKU	SSYS
Brand	Y Strainer
